When obtaining support or buying a second-hand machine, it's important to properly identify your Lamassu Bitcoin ATM model.
Some machines, like the Trofa, Douro, and Douro II, look similar at first glance; but have differing support statuses, software options, and available features.
Trofa (late 2013 – early 2014)
How to tell it apart: 7-inch Nexus tablet computer
Available upgrades: Trofa Upgrade Kit
The Trofa was our original Bitcoin Machine. The last software release compatible with the Trofa was Ambient Antu v7.1 in 2018, and support for it is deprecated.
In order to run the latest and upcoming software, add new compliance capabilities, and obtain ongoing support, this machine's hardware must be upgraded with the Trofa Upgrade Kit.
The Trofa, shown without the Trofa Upgrade Kit
Douro (mid 2014 – 2018)
How to tell it apart: 10-inch Aaeon ACP tablet computer
Available upgrades: Douro Customer Camera Kit
The Douro replaced the Trofa as our Bitcoin Machine model in mid-2014, adding a larger screen and more powerful tablet computer.
A customer-facing camera may be added using the Douro Customer Camera Kit.
The latest software is available for the Douro, and new releases continue to be developed and supported for it.

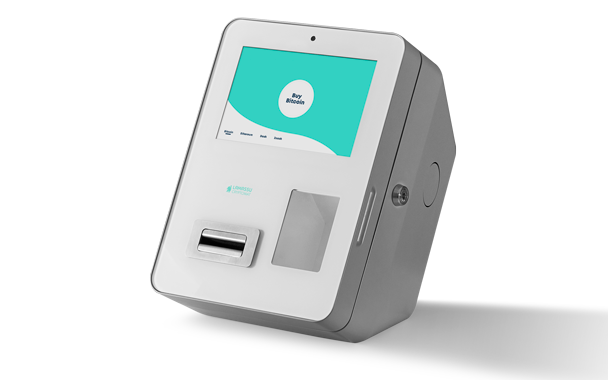

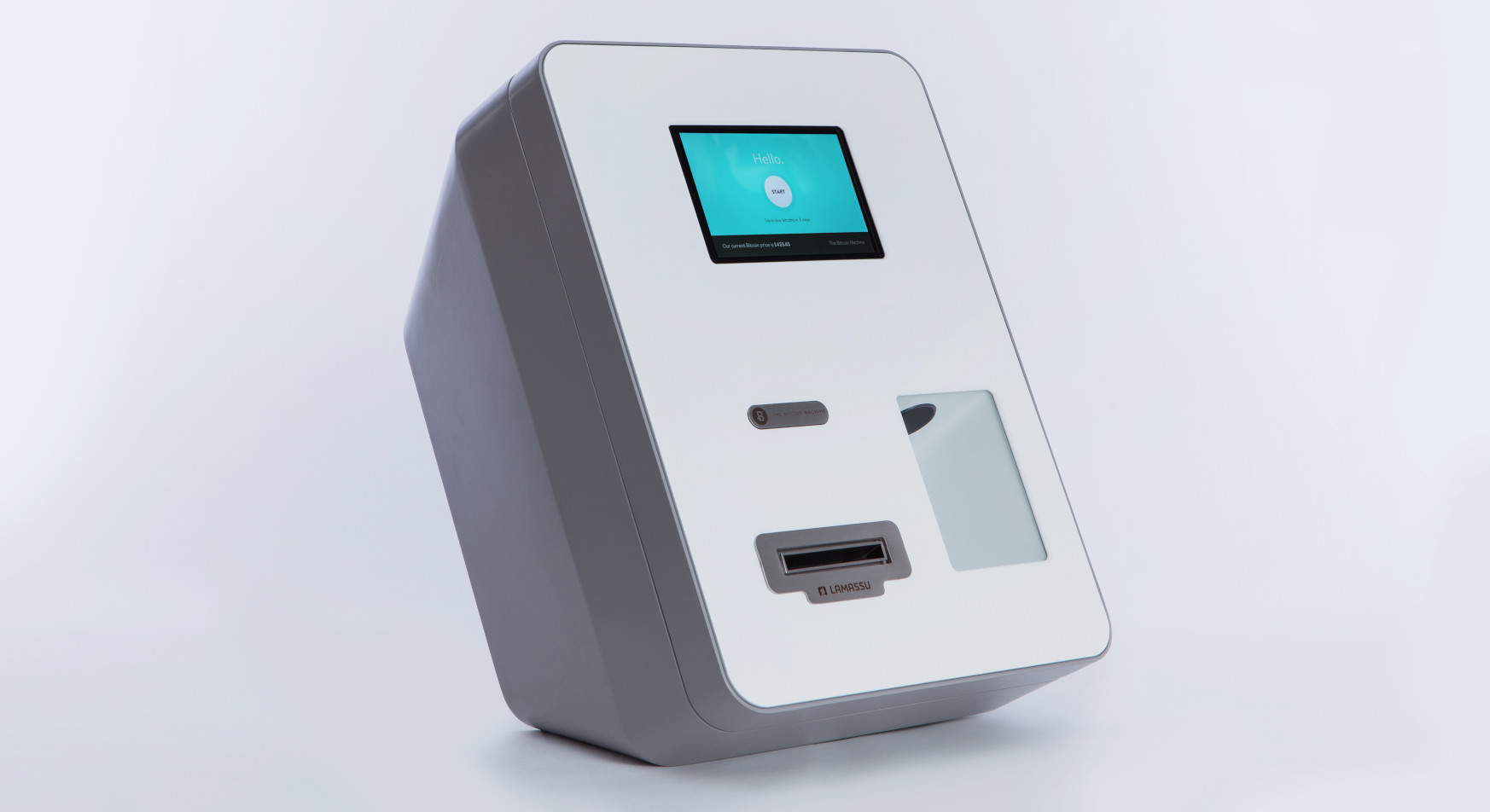

The Douro, shown without the Customer Camera Kit
Douro II (2018 – 2020)
How to tell it apart: All-glass front panel, 12-inch screen, ssuboard computer
The Douro II replaced the Douro in 2018 and debuted alongside our Sintra and Sintra Forte models. Unlike the prior Douro and Trofa models, the Douro II features a built-in customer-facing camera.
The latest software is available for the Douro II, and new releases continue to be developed and supported for it.

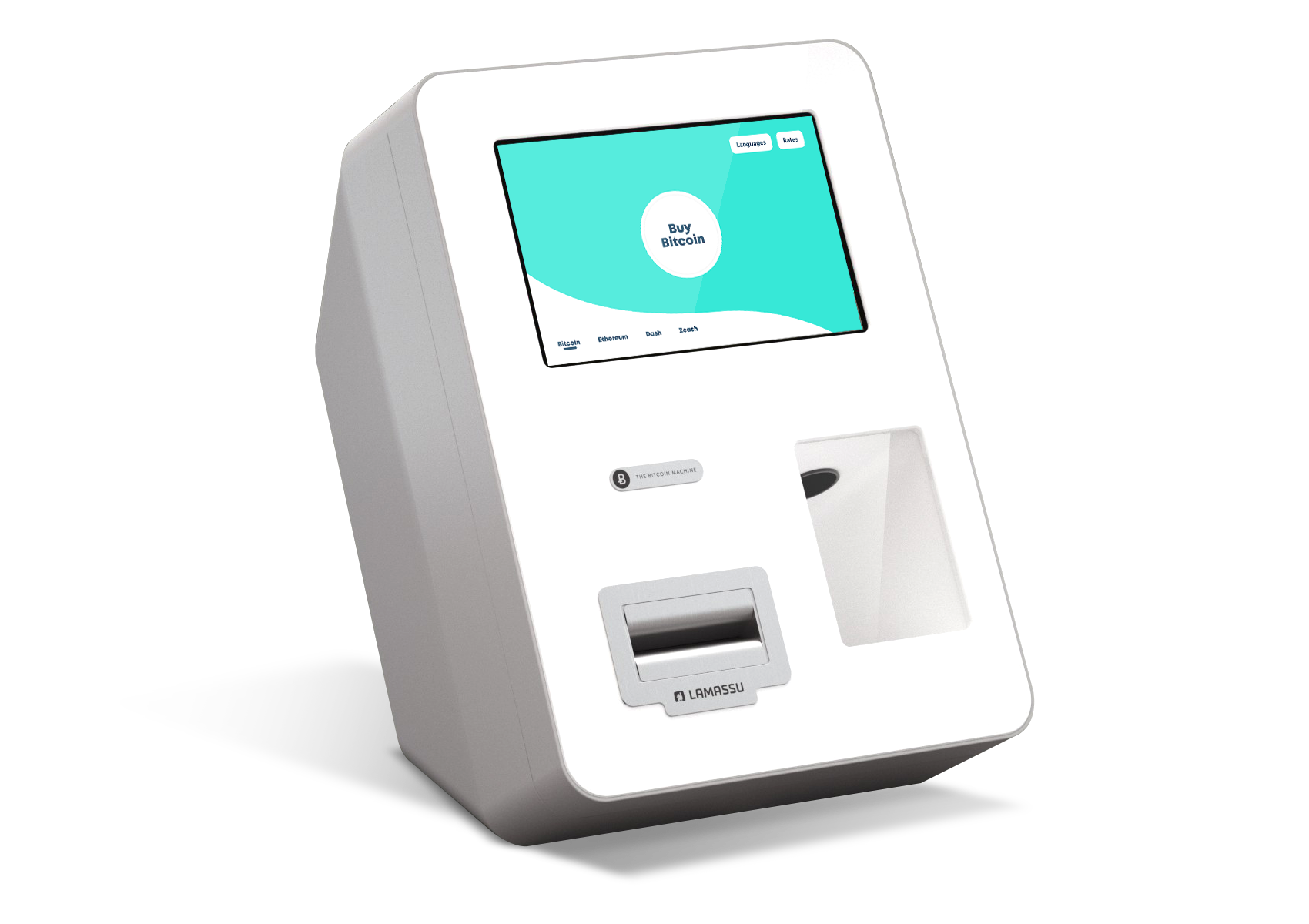

The Douro II
Santo Tirso (2014 – 2018)
The Santo Tirso was a cash-out dispensing stand, compatible with the Trofa, Douro, and Douro II, enabling two-way operation.
The Santo Tirso is supported with the latest software.

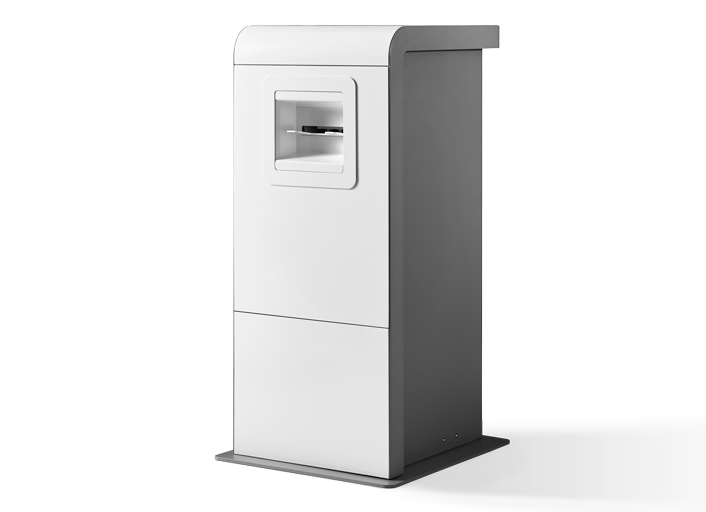

The Santo Tirso stand
Braga (2014 – 2018)
The Braga was a floor stand compatible with the Trofa, Douro, and Douro II.

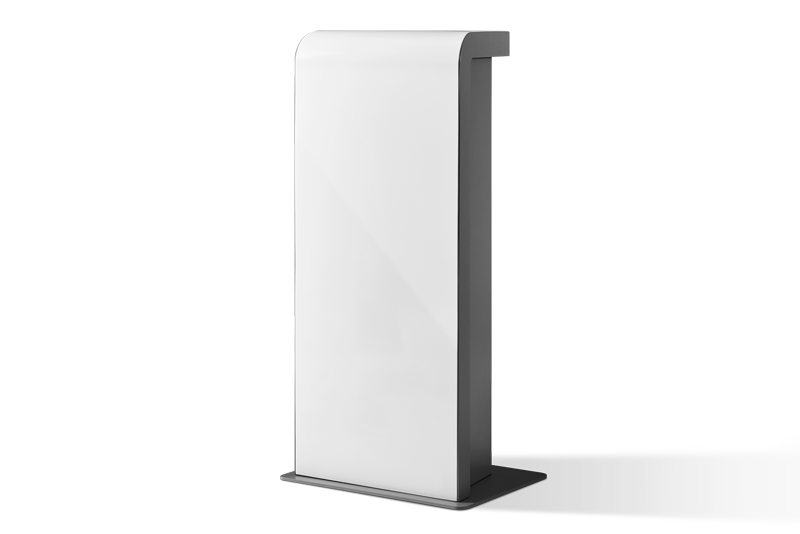

The Braga stand
Sintra – Gen 1 (2018 – late 2019)
How to tell it apart: Glass front panel, 12.1-inch screen, ssuboard computer
Options at time of order: One-way or two-way, receipt printer
Available upgrades: Two-way upgrade
The Sintra debuted in 2018. It is a native floor-standing unit, available in one or two-way configurations. A receipt printer was offered as an option.
The latest software is available for the Sintra (Gen 1), and new releases continue to be developed and supported for it.

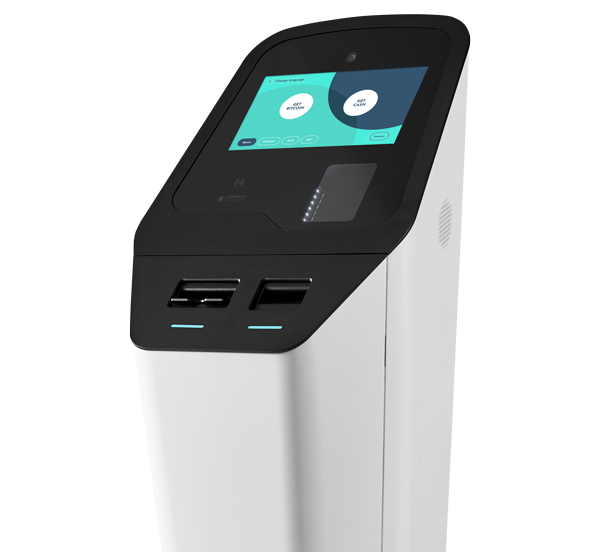

The Sintra (Gen 1) in two-way without optional printer
Sintra – Gen 2 (late 2019 – now)
How to tell it apart: Steel front panel, 10.1-inch screen, Aaeon UPboard computer
Options at time of order: One-way or two-way, receipt printer
Available upgrades: Two-way upgrade, receipt printer
The Sintra was updated in 2019, streamlining its components, simplifying its display setup, and moving to the Aaeon UPboard computer platform.
The latest software is available for the Sintra (Gen 2), and new releases continue to be developed and supported for it.

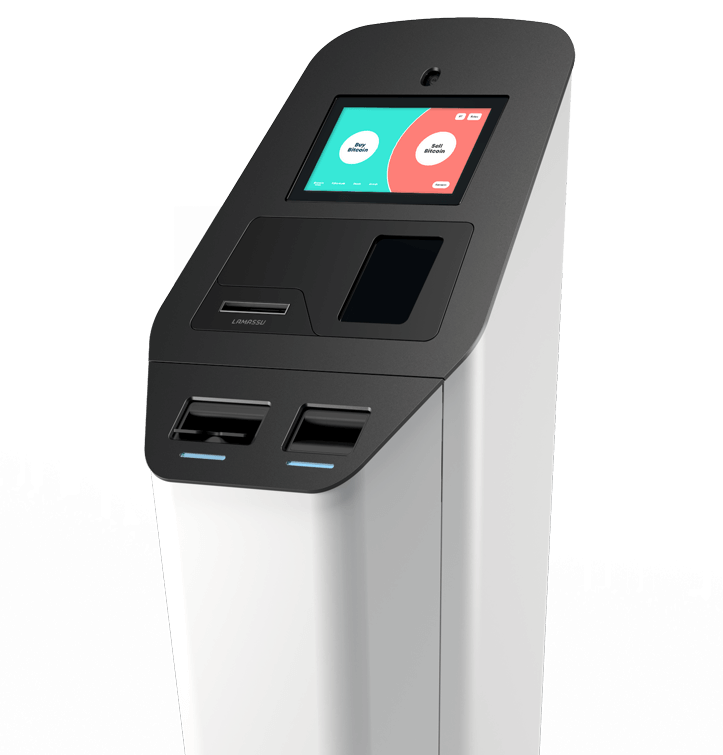

The Sintra (Gen 2) in two-way with optional printer
Sintra Forte – Gen 1 (2018 – late 2019)
How to tell it apart: Internal vault, glass front panel, 15.6-inch screen, ssuboard computer
Options at time of order: One-way or two-way, receipt printer, Kaba Mas lock, plinth
Available upgrades: Two-way upgrade, Kaba Mas auditable lock, anti-ramming plinth
The Sintra Forte debuted in 2018. It is distinguished from the Sintra by its internal cash vault, larger screen, and its options for an auditable lock and plinth.
The latest software is available for the Sintra Forte (Gen 1), and new releases continue to be developed and supported for it.

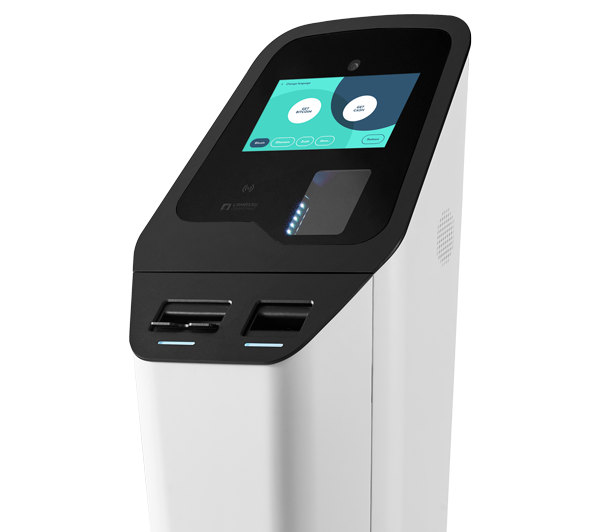

The Sintra Forte (Gen 1) in two-way without optional printer
Sintra Forte – Gen 2 (late 2019 – now)
How to tell it apart: Internal vault, steel front panel, 15.6-inch screen, UPboard computer
Options at time of order: One-way or two-way, receipt printer, Kaba Mas lock, plinth
Available upgrades: Two-way upgrade, receipt printer, Kaba Mas lock, anti-ramming plinth
The Sintra Forte was updated in 2019, streamlining its components, simplifying its display setup, and moving to the Aaeon UPboard computer platform.
The latest software is available for the Sintra Forte (Gen 2), and new releases continue to be developed and supported for it.
The Sintra Forte (Gen 2) in two-way with optional printer
Gaia (2019 – now)
How to tell it apart: Multiple colours, wall-mountable
Options at time of order: Colour choice, receipt printer, Pelican transport case & bracket
Available upgrades: Receipt printer, Pelican transport case & table bracket
The Gaia debuted in 2019. It is our lowest-priced unit yet, and unlike the Douro, may be wall-mounted, features a customer-facing camera, and has the option for a receipt printer.
The latest software is available for the Gaia, and new releases continue to be developed and supported for it.

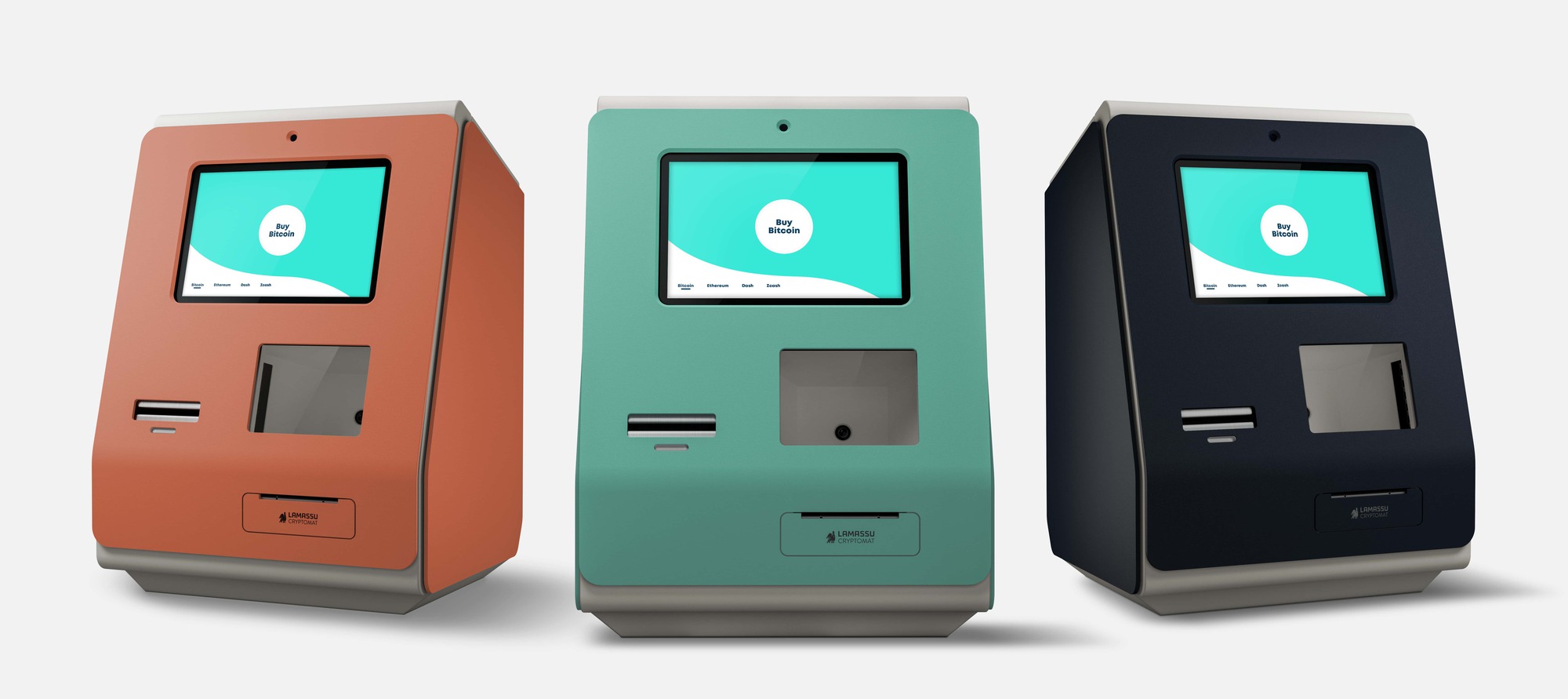

The Gaia, in available colours, with optional printer
Tejo (late 2021 – now)
How to tell it apart: Internal vault, steel front panel, 15.6-inch screen, UPboard computer
Options at time of order: One-way or two-way, large validator cashbox for 3000 notes, 1 or 2 extra dispenser cassettes, receipt printer, Kaba Mas auditable lock
Available upgrades: Two-way upgrade, large validator cashbox for 3000 notes, 1 or 2 extra dispenser cassettes, receipt printer, Kaba Mas auditable lock
The Tejo debuted in 2021. Influenced by the simplicity and elegance of our compact Gaia model, the Tejo is a native two-way machine that features a customer-facing camera, has the option for a receipt printer, it has up to three times the capacity for customers' cash deposits, also up to double the note capacity for cash-out (across four denominations) and a large full-HD screen.
The latest software is available for the Tejo, and new releases continue to be developed and supported for it.

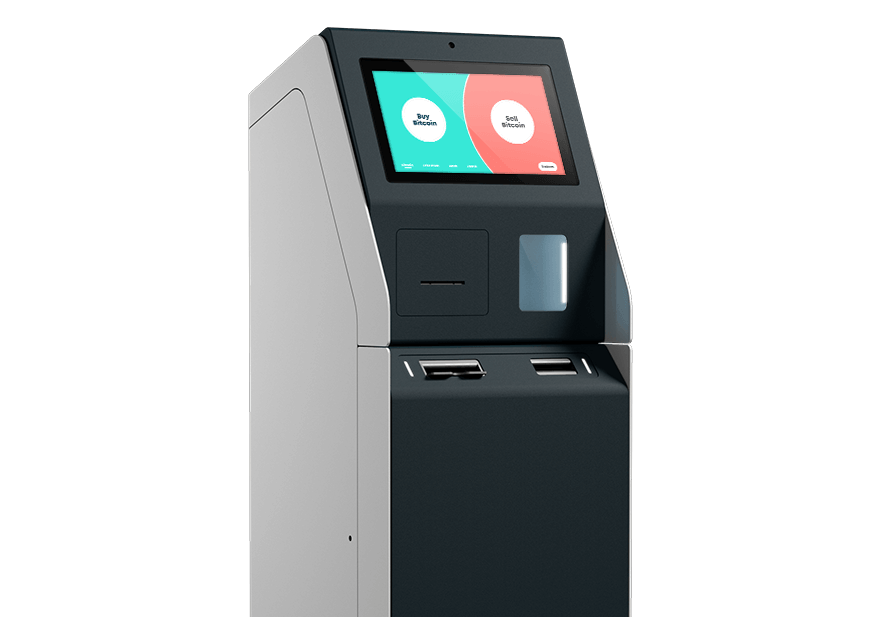

The Tejo in two-way with optional printer
